White stoneware clay with 40% impalpable grog (up to 80 Mesh).
This clay body is a studio staple, grog this fine can't be felt, the clay feel is as smooth as butter. It has been specifically developed for wheel-throwing and can also be used for modelling smooth pieces with fine details.
It has extremely fast drying times, greatly reducing kiln scheduling. NB: You can, like normal, wrap/cover unfinished pieces to delay drying as well.
The high content of grog confers an excellent behaviour during drying and firing. Its particular ivory colour after firing is much appreciated and provides an excellent ware for glazes and colouring oxides. Colouring oxides develop bright and intense tones on this body.
Suitable for tableware (food-safe) according to ISO6486.
Available in an extruded body.
Technical Specifications:
Firing range: 1240-1300ºC / Cone 6-10
Biscuit temperature: 1000ºC / Cone 06
Water content: 19%
Plasticity (IP Atterberg): 16
Carbonate content (CaCO3): 0%
Drying shrinkage: 5.9%
Firing shrinkage 1300ºC: 7.0%
Porosity (water absorption) at 1300ºC: 0.0%
Dry bending strength: 3.0 N/mm2
Fired bending strength 1300ºC: 51.0 N/mm2
Thermal coefficient 1250ºC (25-500ºC): 60.4x10^-7ºC^-1

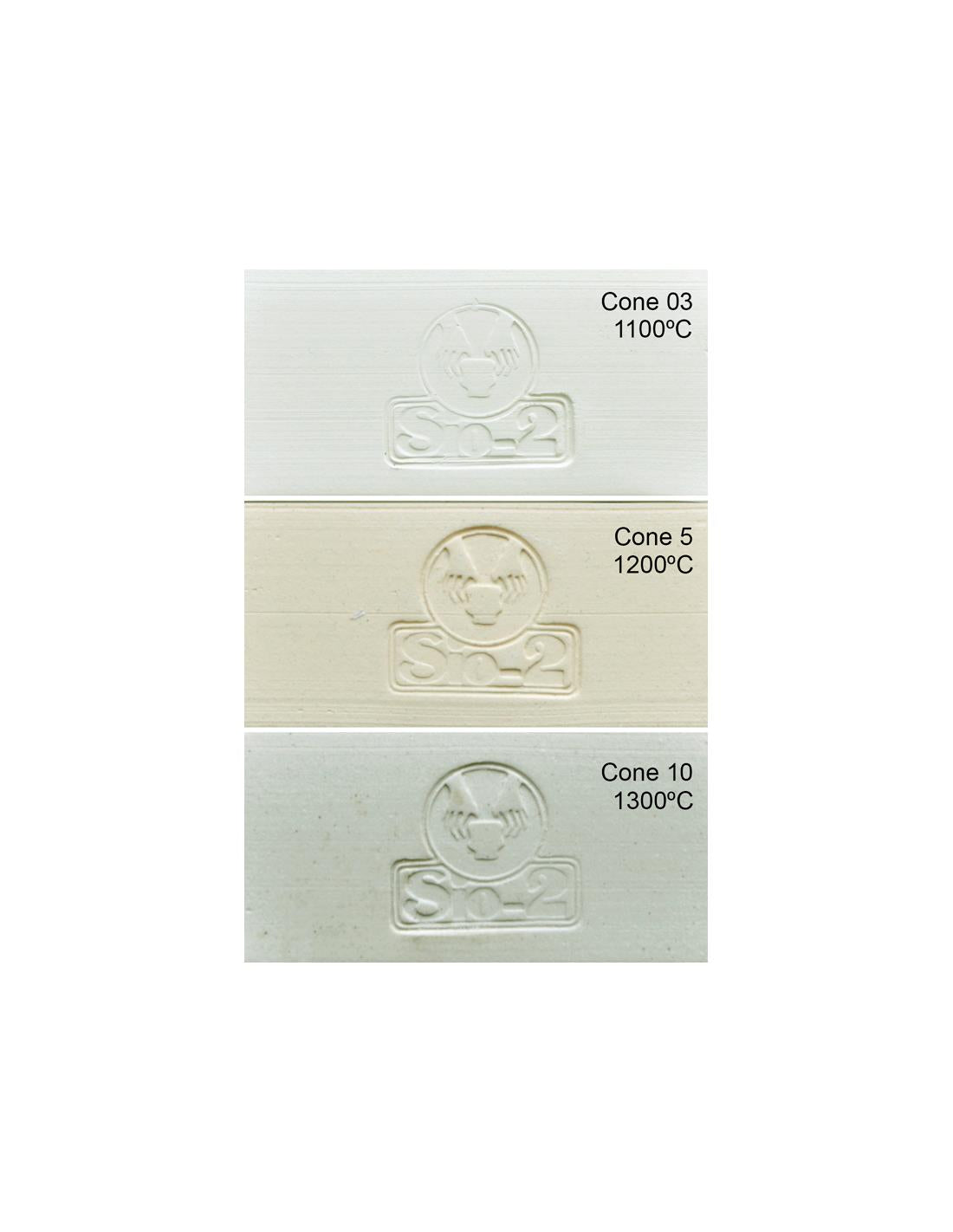

(*) Firing range recommended for the clay to develop its best performance, both in terms of technical and safety characteristics, under conventional firing conditions. The colour samples may show temperatures outside the recommended range to provide a broader view, but these are pieces fired under controlled conditions. Cone equivalence according to Orton table for self-supporting cones, regular-SSB and 150ºC/hr heating rate.
